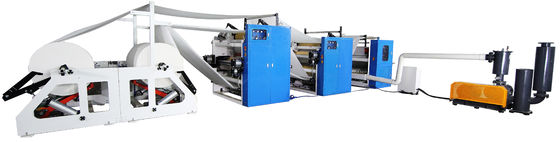

PLC Tissue Paper Production Line With Steel To Steel Embossing Unit

Detalles del producto

Lugar de origen: CHINA

Nombre de la marca: ORGINAL

Número de modelo: DM-HC 180-190-200

Pago y términos de envío

Cantidad de orden mínima: 1SET

Precio: Negotiable

Detalles de empaquetado: la plataforma de madera, 20 pies de envase puede cargar 1set

Tiempo de entrega: 40 días

Capacidad de la fuente: 5sets por mes

Consiga el mejor precio
Punto culminante:

PLC Tissue Paper Production Line

,

5.5KW Tissue Paper Production Line

,

Simen Tissue Paper Production Machine

Conducción:
separación de la conducción del motor
Grabación en relieve:
acero a de acero o a de acero a de goma (opción)
Plc:
Simen
Conducción:
Conducción independiente del motor
Voltaje:
380v
Poder (w):
5.5KW
Garantía:
12months
Conducción:
separación de la conducción del motor
Grabación en relieve:
acero a de acero o a de acero a de goma (opción)
Plc:
Simen
Conducción:
Conducción independiente del motor
Voltaje:
380v
Poder (w):
5.5KW
Garantía:
12months
PLC Tissue Paper Production Line With Steel To Steel Embossing Unit

Good Used 100 meter/min High Speed Economical V Folded Facial Tissue Folding Machine



V Folded Facial Tissue Kitchen Towel Machine With Glue Laminated System steel to steel embossing unit



DM-HC-180/190/200 Facial Tissue Folding Machine



MODEL 5T 6T 7T 9T 10T 14T
Max. Width of jumbo roll 1050mm 1260mm 1500mm 1900mm 2000mm 2850mm
Slitting knife 5sets in back and front 6sets in back and front 7sets in back and front 9sets in back and front 10sets in back and front 14sets in back and front
Vacuum pump 15kw 18.5kw 18.5kw 22kw 22kw 50kw
Main driving motor powe 5.5kw 5.5kw 7.5kw 7.5kw 11kw 15kw
Machine size 6×2.3×1.9m 6×2.5×1.9m 6×2.8×1.9m 6×3.3×1.9m 6×3.5×1.9m 6×4×1.9m
Machine weight 5500kg 6500kg 7500kg 8300kg 8500kg 9500kg
Machine speed 500-1000 sheet/min/lane
Max.diameter of jumbo roll Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll Ф76.2mm(other sizes can be ordered)
Bankstand 2-6 jumbo rolls (should be ordered)
Embossing unit Steel to rubber,steel to paper,steel to steel(should be ordered)
Edge embossing unit Air bag type,bearing pattern(should be ordered)
Air pressure 0.8Mpa(user supplied)
